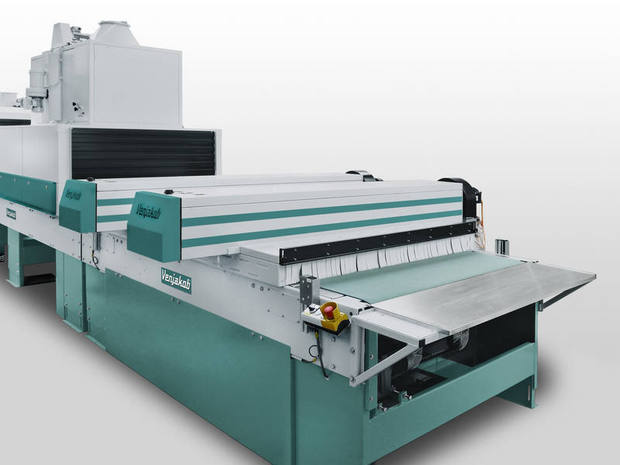

| Venjakob VEN DRY UV
|
|
UV curing paint systems are hardened within seconds by intensive UV radiation. These systems permit short production processes requiring little space. The number of required radiators depends on the throughfeed speed, the type of paint, the quantities applied and the workpiece geometry. Performance optimised UV lamps are used in the VEN DRY UV dryer. These feature emission spectra perfectly matched to the individual paint/lacquer. Mature transformer technology in combination with high-performance UV lamps ensure safe and reliable operation.
Fields of application:
Furniture industry, surface finishing
UV coating materials
Equally suitable for workpieces made of wood, plastic and metal
The new generation of dryers with "SURROUND-UV" technology offers the following advantages:
Efficient use of energy through optimised high-reflection radiators
Throughfeed curing of surfaces and all edges due to a newly developed reflector
Frequently 1 radiator is sufficient for clear lacquers, colour paints require 2 radiators
More than 20 % additional energy saving compared to the predecessor model
Notably reduced IR portion ("cold light") for sensitive materials
Efficiency control of the UV lamps to ensure stable operating parameters
The infinite setting range from 50...120 W/cm permits highly accurate operation and UV lamp readjustment
Long operating life of the lamps
Temperature controlled exhaust air further reducing your operating costs
Mains fluctuations of up to 10 % are balanced
No damage resulting from a transport stop thanks to improved shutter technique
Quickly convertible for other workpieces, materials and/or lamps
Easy accessibility for maintenance and lamp change
Simple and easy operation
Variable, modular system |
|
